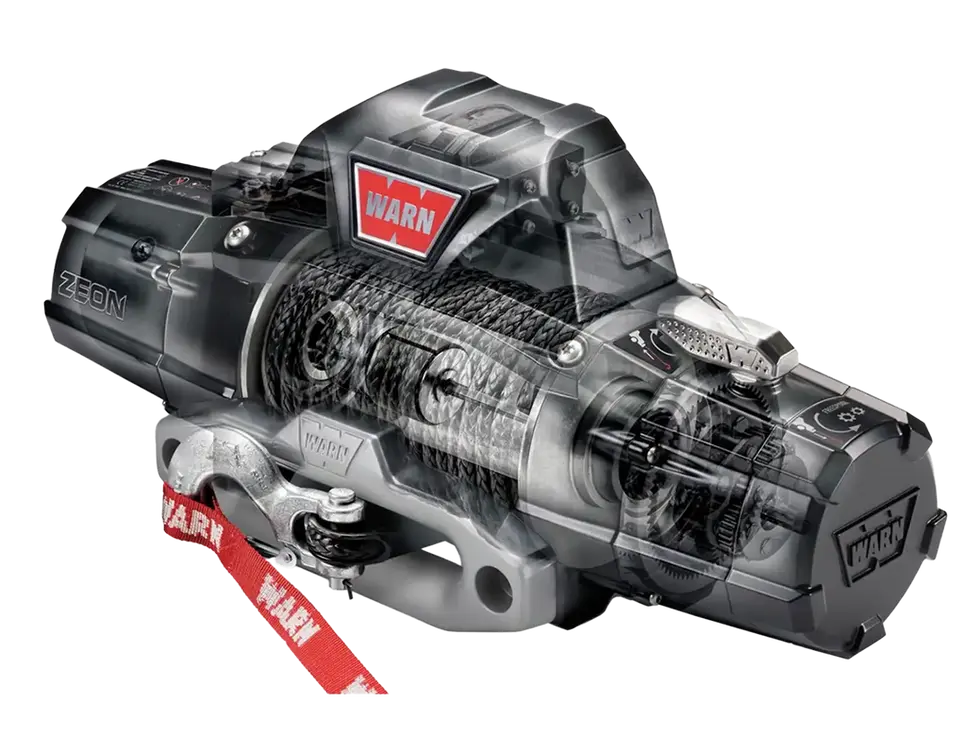

WARN ZEON 10s WINCH

The Warn Zeon is the go-to for trail recovery, climbing assistance, and removing obstacles for off-roaders who demand the best and expect reliability when they need it most. With aggressive styling, clean lines, and fast line speed, the Warn Zeon winch sets the standard for heavy-duty, high-performance recovery for Jeep Wrangler & Gladiator owners who need the best in winching performance. Built with an incredibly smooth planetary gear design and a heat-dissipating brake, the Warn Zeon is the benchmark for state-of-the-art winches in the premium winch category — featuring corrosion inhibiting double powder coating, stainless steel fasteners, and top of the line moisture sealing. The Warn Zeon sets the standard to which all other winch brands and series look to compare — designed, tested, and assembled by Warn engineers and servicers in the U.S.A.

• Reliable pulling power for off-road recoveries
• Fully sealed case with IP68 rating
• Series wound motor with 3-stage geartrain
• Removable control pack
• Synthetic Rope
• Standard 10x4.5" bolt pattern
• Backed by a Limited Lifetime Warranty
• Rated Line Pull: 10,000lbs
• Geartrain: 216:1
• Clutch: Free-spooling rotating ring gear
• Brake: Mechanical Cone
• Drum Diameter: 3.15"
• Drum Length: 9.3"
• Rope: Spydura Synthetic
• Fairlead: hawse fairlead
• Recommended Battery: 650 CCA Minimum
• Battery Leads: 72"

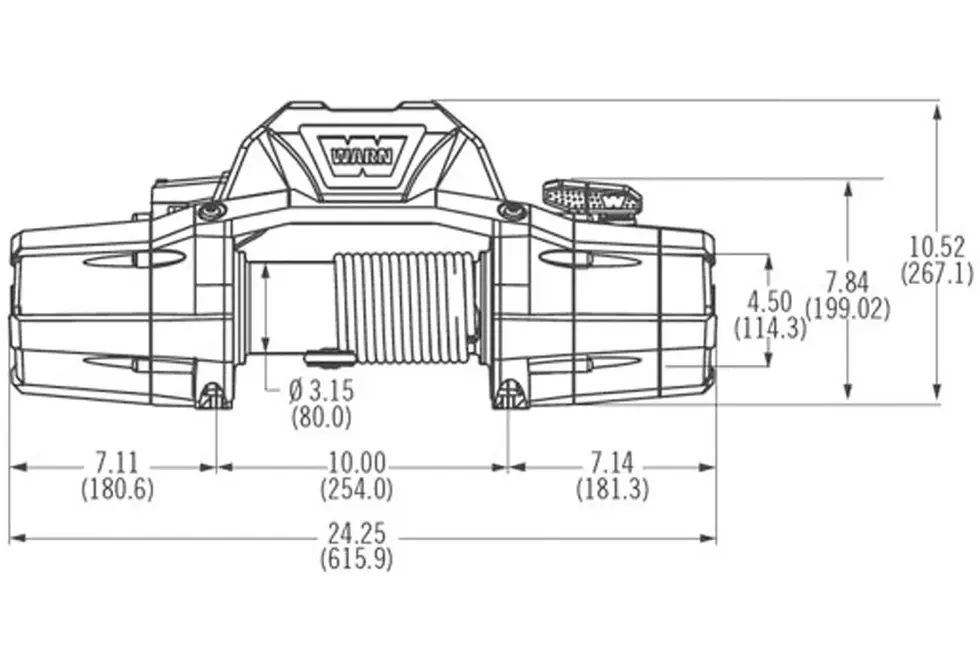

• Dimensions: 24.25" x 7.14" x 10.52"
• Bolt Pattern: 10 x 4.5"
• Added Waight: 85 lb

Estimated Installation Time: 2 Hours

Installation Difficulty Level: Moderate

Installation Guides: ZEON 10-S Winch
