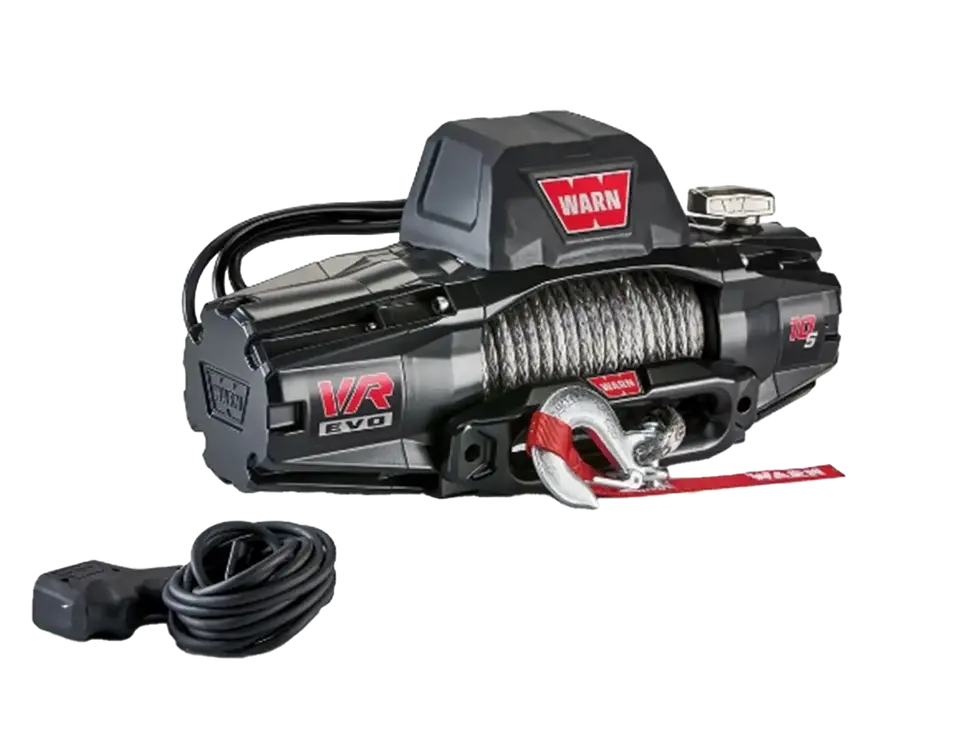

WARN VR EVO 10s WINCH

With its aggressive styling, fast line speed, and low amp draw, the Warn VR EVO Series is a reliable standard-duty winch ideal for Jeep Wranglers & Gladiators. The VR EVO winch is perfect for trail recovery, climbing assistance, removing obstacles in your path, or even the yard. Built with a 3-stage planetary gear, IP68-rated waterproof materials, a high-performance Albright contactor paired with a remote that offers both wired and wireless control, the Warn VR EVO is an actual state-of-the-art winch. The 2-in-1 remote design provides both a wireless and wired operation for versatility and usefulness; the wired backup includes an 11.5 ft. lead for those that need or prefer wired control in their recovery. Warn sets the benchmark all other winches look to match; you can trust the Warn brand given its endless reviews and customers proving its reliability year after year. Designed and tested by Warn engineers in the U.S.A.

• A powerful series-wound motor and planetary gear train deliver faster line speed under load, with lower amp draw.
• IP68-rated waterproof winch construction keeps the elements out.
• High-performance Albright contactor delivers maximum reliability.
• Control packs can be relocated for low-profile installations.
• Durable, one-piece cast-aluminum tie-plate for added strength and durability.
• 2-in-1 remote with wired and wireless options for ease of use and versatility.
• Limited lifetime warranty for mechanical parts and 7 years on the electrical.
• Electrical Control Type - Albright Contactor
• Motor Type - Series Wound
• Drive Gear Type - 3-Stage Planetary
• Gear Reduction Ratio - 218:1
• Brake Type - Spring
• Line Diameter - 3/8 Inch
• Length - 90 Feet
• Line Material - Synthetic
• Fairlead Type - Hawse
• Remote Type - 2-in-1; Wireless & Wired
• Mounting Pattern Length - 10 Inch
• Mounting Pattern Width - 4-1/2 Inch
• Max Line Pull - 10,000 lbs.
• Max Line Speed - 5.2 ft. per Minute at 10,000 lbs.
• Max Amp Draw - 358 Amps at 10,000 lbs.
• Drum Material - Steel

Estimated Installation Time: 1-2 Hours

Installation Difficulty Level: Moderate

Installation Guides: Warn VR EVO10-S Winch
